Flexible Rubber Cables for Industrial Power & Mobile Applications

GenSeeki’s flexible rubber cables are built for harsh industrial conditions—offering excellent flexibility, abrasion resistance, oil resistance, and weather durability. Ideal for welding, mobile equipment, and construction power applications.

Durable & Flexible Rubber Cable Solutions from China Manufacturer

Our rubber-sheathed cables are insulated with high-performance compounds like EPDM or EPR and designed for dynamic or fixed installations. They offer outstanding mechanical strength, UV and ozone resistance, and operate reliably in extreme temperatures.

flexible rubber cables for industrial applications

YZ / H05RR-F Flexible Rubber Cable – Light-Duty Industrial Wiring

Rated Voltage:
✔ 300/500 V.
Conductor:
✔ Class 5 Oxygen-Free Copper (OFC).

Flexible and lightweight, this cable is ideal for small appliances, domestic tools, and temporary power distribution. Offers dependable oil and abrasion resistance.

quick quote

YC / H07RN-F Rubber Cable – Heavy-Duty Flexible Power Cable

Rated Voltage:
✔ 450/750 V.
Conductor:
✔ Class 5 Oxygen-Free Copper (OFC).

Engineered for mobile and construction power systems, this cable provides high mechanical strength and long-term flexibility under harsh outdoor and industrial conditions.

quick quote

heavy-duty flexible rubber cable for construction equipment

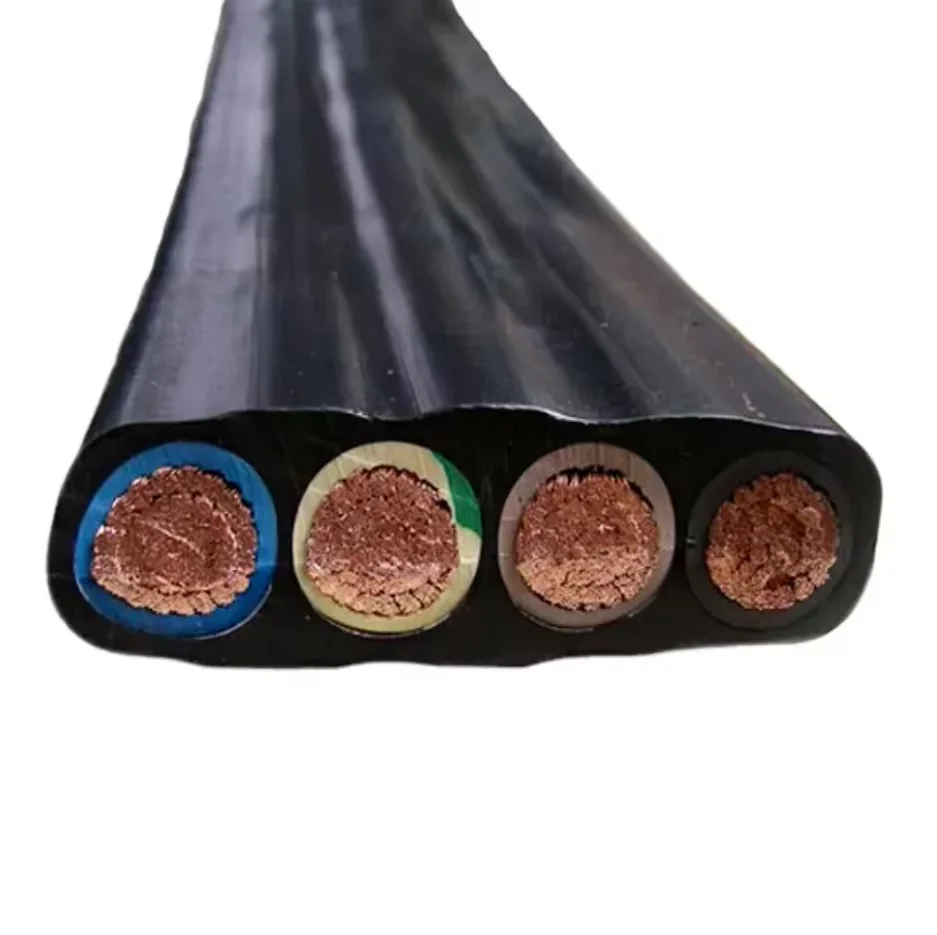

flat flexible rubber cable for crane and elevator systems

Flat Rubber Cable – Space-Saving Design for Cranes, Elevators, and Power Tracks

Rated Voltage: 300/500/750 V.
Conductor: Bare stranded copper or aluminum alloy

Flat rubber cables support compact routing in tight spaces and continuous motion systems like hoists, lifts, and stage equipment. Their shape prevents twisting and enhances heat dissipation.

quick quote

Aluminum Alloy Conductor Rubber Cable – Lightweight & Budget-Friendly

Rated Voltage: 300/500 V & 450/750 V.
Conductor: Fine-stranded Class 5 aluminum alloy (Ø0.3 mm)

These cables deliver the flexibility of copper while saving 40% in weight and offering cost advantages for mobile or large-scale installations. Corrosion-resistant and thermally stable.

quick quote

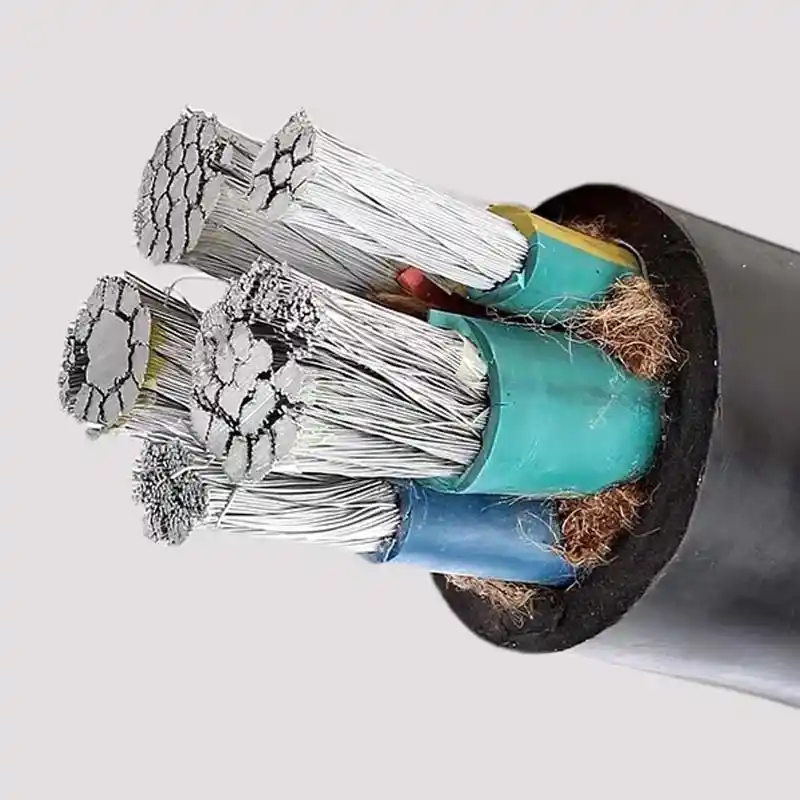

lightweight aluminum alloy flexible rubber cables

Why Choose Class 5 Aluminum Alloy Conductors for Rubber Cables?

GenSeeki’s aluminum alloy conductors are made from precision-blended elements—aluminum, rare earths, copper, iron, magnesium, and boron—to meet IEC and GB standards. Each component contributes to electrical performance, strength, and corrosion resistance.

Side-by-Side Comparison of Aluminum Alloy and Copper Cable Cross Sections

Alloy Element Highlights:

Rare Earths: Enhance conductivity and anti-corrosion performance.
Copper: Supports continuous operation at 90°C with heat resistance.
Iron: Increases tensile strength and reduces creep.
Magnesium: Minimizes terminal contact resistance.
Boron: Improves acid resistance and strand smoothness.
After heat treatment, these conductors achieve 30% elongation with 40% less spring-back than copper.

Close-up of Class 5 Aluminum Alloy Conductor with Fine-Stranded Structure

Reliable Bimetal Terminals for Long-Term Performance

To avoid galvanic corrosion and dissimilar metal issues, GenSeeki uses dedicated aluminum-copper terminals tailored for alloy cables. This ensures secure, long-life connections.

bimetal terminals for flexible rubber cables connection

Copper vs. Aluminum Alloy Conductors: Performance & Cost Comparison

Aluminum alloy offers similar ampacity with only 1.63× the cross-sectional area of copper but is:
Up to 50% lighter – easier to install and handle
More flexible – better suited for coiled and mobile use
More affordable – reduces total cable cost while maintaining safety

Rubber Cable Technical Specifications – Choose the Right Cable

GenSeeki provides complete rubber cable specs to help you select based on voltage, insulation, jacket material, flexibility, temperature, and installation requirements.

Rubber Cable Specifications
YZ/H05RR-F Rated Voltage	300/500 V
YC/H07RN-F Rated Voltage	450/750 V
Rated Temperature	60 °C
Conductor Material	Bare stranded copper / Aluminum Alloy
Insulation Material	EPDM
Insulation Color	2 cord: Blue & Brown 3 cord: Yellow/Green & Blue & Brown 4 cord: Yellow/Green & Blue & Brown & Black 5 cord: Yellow/Green & Blue & Brown & Black & Gray More than 5 cores: Digital identification
Jacket Material	CPE
Jacket Color	Black or Custom

Custom Rubber Cables to Match Your Budget & Application

GenSeeki supports full customization—from compound selection to packaging—to meet regional standards and project needs.

Insulation & Sheath Materials

Choose the Right Compound for Performance & Cost

TPE

EPDM

CPE

XLPO

Conductor Types

Copper or Aluminum Alloy – You Decide

Aluminum Alloy

CCA

Class 5 Copper

Class 6 Copper

Cable Markings

Custom Printing to Meet Local Standards

Plain / Unmarked

Inkjet Printing

Embossed Marking

Laser Etching

Packaging & Delivery

Adaptable Packing to Reduce Freight & Damage

Stretch Film Wrapping

Kraft Paper + Film

Wooden Drums

Wooden Crates

Request a Custom Rubber Cable Quote
